DataLibrarian - Collect your data



This project was one of those ”this will be a tad too much” ones. As I was working on the CropperHead project, I realised that I needed more training data – a lot more.

Naturally I first tried to rely on my friends: by asking them to dive into their dark, tech side and share with me their libraries of photos that had been cropped. Practically the same that I had done with the ExifAnnotator tool.

However, this proved a tad cumbersome, as the crop info I had extracted was only applicable for those performed with Adobe Lightroom. Moreover, having people installing python on their computers just for this reason felt like a bit of an overkill - and I was not in the mood of creating actual shippable apps with signatures and all securities considered.

So, I decided to give the end users an opportunity to help me gather the much needed data – crowdsourcing at its best!


To collect the data effectively, I would need the means to record the preferred crop at the UI, a backend to sort and validate the data, and, finally, places to store the items.

The UI I implemented in the CropperHead project mentioned above. For the storage, I went with mongoDB run in cloud, such as mongoDBAtlas for the labels and AWS S3 free tier for the images.

For the backend, I needed a system that could effectively take and validate incoming data. This data could then be saved, if deemed worthy. I also thought it would be nice if the service could be designed in an expandable way to accommodate possible high traffic.

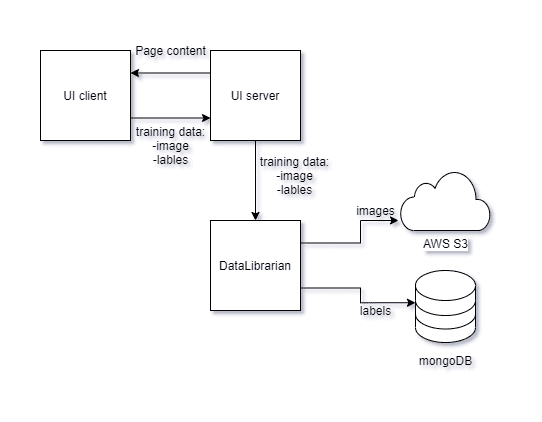

The system, simply The basic planned architecture of my little data processing plant

The design!

I started with simple RestAPI in mind: the service would take in the image and labels with a PUT call and return success or error as an HTTP status code based on a few cases where it went wrong. For example, if the service failed to receive any coherent data, got some unexpected type, failed validation or failed to upload the data into the respective storages - making the user's life a bit nicer, you know! So, in short, the workflow would be:

  1. Receive the image as base64 encoded string
  2. Receive the labels as json
  3. Validate the image
  4. Validate the labels
  5. Send the image to S3
  6. Send the labels to MongoDB
  7. Return a HTTP status code on whether the validations and uploads were successful.

Seems simple enough, right!

The expand...

Well it wasn’t. Mainly due to my “if I implement it once, why not use it later” –mentality. Here’s a breakdown of what happened:

Soon after implementing the base functionality given in the list above, I realised that I would need some simple way to debug the service. I only wanted to find out how the individual parts worked and felt that writing unit tests for such a seemingly small and unplanned project was unnecessary. So I implemented simple functions to save the image and labels on the disk instead.

Then it hit me. Why not have this as an option at the service...

And thus, the expand had started.

I implemented and debugged the service further and had to change to mlab as DB provider as it was so nicely tied with Heroku already. This inspired the second option: having alternatives for saving the labels to. And heck, why not the images as well!

So, I added the functionality to specify your own S3 instances, as well as your own mongoDB instances. All the configuration could be made with an .env file, or environmental variables to ensure security (no clear text secrets to git!) and expandability (using env would apply even if multiple instances of the service would be launched)

...and expandability

As mentioned in the intro, I wanted to make the service scalable from the get go. Some features I added just for this reason: 1. Configuration with environment variables 2. Unique Identifiers for the received images 3. Running with Nginx and wsql to ensure multiple instances and thus scalability

The result

And lo' and behold, it worked! I could use several clients to send data simultaneously to the service, and it would snappily process them. I did not do a full stress test for the system, but I added a pop–up to the UI informing the user whether the update was successful or not.

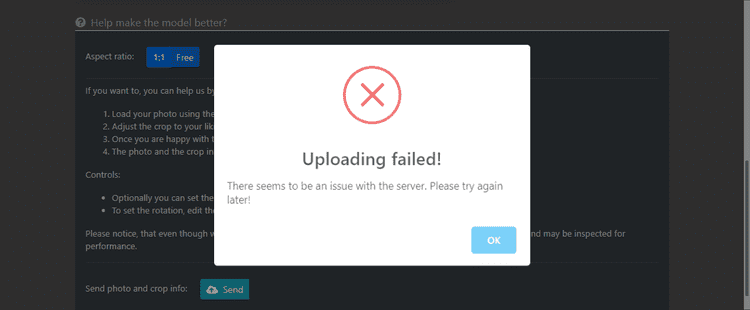

Task failed successfully *A nice way to let the user know that the Heroku service running the DataLibrarian instance needs a bit more time to wake up.*

Configuring the service

One can configure the service with command line arguments, .env file or environmental variables. One can define several data inputs, how to validate them and where to store them.

INPUT_CONFIG = '{"type": "base64","tag": "image"}'
LABEL_VALID_CONFIG = '[{"validator": "type","args": [{"filename": "str","x": "int","y": "int"}]}]'
DATA_VALID_CONFIG = '[{"validator": "img","kwargs": {"h": 0,"w": 0}}]'
LABEL_ACTOR_CONFIG = '[{"actor": "mongo","args": ["<user>","<pswd>","<url>","<db>","<col>"]}]'
DATA_ACTOR_CONFIG = '[{"actor": "S3","args": ["<access_key>","secret_key>","<bucket_name>","images/",""]}]'

*And example configuration for a DataLibrarian instance.

Starting the service / fire it up!

This was another entertaining part to implement. I had just learned of the Fire library. Using that, making the command line scripts for starting the service was child’s play! Moreover, user can overwrite some settings for easier debugging, verbosity, logging etc. All this candy implemented with relative ease!

The future tense

So, what could be improved?

I suppose that, in the future, the configuration could be improved further. At the moment setting each secret individually at the host panel is rather cumbersome. Also, making the service into a docker container could prove beneficial in controlling the amount of instances and hence the workload better.

However, for a simple hobbyist like me, this solution was more than sufficient.

I can now set up a service to take in varying types of data (text, images, files), do validation on them (several ready written validation) and select where to store the approved data, locally or remotely. Quite versatile and neat if you ask me.

Now to only come up with more projects to utilise my newly trained librarian!
